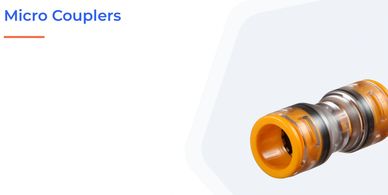

Micro Couplers

Micro Couplers are used to join two segments of MicroDucts. Straight and Transition couplers are available. Multiple sizes available starting at 5 mm

FEATURES

• Easy assembly/disassembly, no tools required
• Provide an air- and water-tight connection
• Color coded by size
• Tested to meet or exceed the stringent requirements of CENELEC EN 50411-2-8:2009 Standard for MicroDuct Connectors, for Air Blown Optical Fibers
• Low profile design
• Approved for use at 232PSI/16Bar
• "HD" or "Heavy Duty" denotes enhanced pull-out and pressure characteristic

Micro End Caps

Seal the ends of your MicroDucts with Micro End Caps. Sizes available from 5mm to 27mm.

FEATURES

• Easy assembly/disassembly, no tools required
• Provide an air- and water-tight connection; keep debris out of MicroDuct pathway
• Color coded by size
• Tested to meet or exceed the stringent requirements of every local Standard for MicroDuct Connectors, for Air Blown Optical Fibers
• Approved for use at 230PSI/16Bar
• Low profile design

OverRide Micro End Cap

A resealable valve has been installed on the end of Dura-Line's existing Micro End Caps to make OverRide installations safer and more efficient. The OverRide Micro End Cap is placed on the far end of the reel (opposite of the end being installed) and allows the installer to safely pressurize and depressurize the MicroDuct before and after an OverRide installation.

FEATURES

• Easy assembly/disassembly, no tools required
• Provide an air- and water-tight connection; keep debris out of MicroDuct pathway
• Color coded by size
• Approved for use at 230PSI/16Bar
• Low profile design

FuturePath Splice Kits provide all the necessary components to join segments of FuturePath. Kits include correct size of sleeve, couplers, sealant strips, vinyl tape and locate wire connector.

FEATURES

• Provides superior splice point protection from impact and external conditions
• Designed for direct bury applications
• Contains all items necessary for splicing and connecting FuturePath
• Low profile
• Additional mechanical protection to maintain integrity of air- and water-tight Micro-coupled bundle
• Custom designed for each FuturePath configuration
• Does not compromise jetting or cable installation performance
• Detailed instructions provided with each kit on proper splice procedures and usage

Using the correct tool for the job makes all the difference. Choose from a variety of cutters designed with a special purpose in mind - making the job go safely, smoothly, and quickly.

FEATURES

• The Straight MicroDuct Cutter creates a clean, 90 degree cut that is required at the MicroDuct splice point
• The Round MicroDuct Cutter operates similarly, but only cuts the MicroDuct itself. It leaves the MicroCable or pull string inside the MicroDuct unscathed.
• The Longitudinal Sheath Slitter is used to remove FuturePath oversheath. Includes a dual, reversible cutting blade with safety guards and an extra dual-sided blade in the handle. Additional blade storage is also available in the handle
• Various sizes of Ratchet, Rotary and MicroDuct cutters are also available

The MicroDuct Organizer was designed to arrange MicroDucts at termination. It’s small and compact, requiring a minimum amount of mounting space. The modular design allows ordering additional brackets as needed.

FEATURES

• Ideal to organize MDU installations
• Modular System can expand to hold multiple MicroDucts
• Wall Mounting Plate – attaches base to wall
• Mounting Bracket – secures each row of MicroDucts
• Additional Brackets can be ordered for expansion
• Supported with Technical Bulletin for Installation Instructions

Gas Block Connectors provide a simple and effective gas seal between the MicroDuct and the fiber cable to prevent gas, water, or moisture from entering the duct. The connector creates a seal around the installed cable.

FEATURES

• Available for 5mm - 18mm Microducts
• Each size accommodates a range of different fiber cable OD's

Divisible Duct Seals provide an air- and water-tight seal between the cable OD and the inner wall of the MicroDuct. The hard outer cover is divisible so it can be easily installed around an existing cable.

FEATURES

• Divisible cover and seals for easy installation around existing cables
• Durable outer shell with multiple inner seals to accommodate a range of cable sizes
• Inner seals are color coded to quickly differentiate between cable OD's
• Available for MicroDuct OD sizes 5mm - 27mm

Made from Zinc coated Carbon steel, MicroDuct Pulling Eyes facilitate the quick placement of MicroDucts. The hex head design allows for faster and safer installation and removal from the duct. The Pulling Harnesses can accommodate up to 4 Micro Pulling Eyes at a time and have staggered eyelets every 4 inches.

FEATURES

• MicroDuct Pulling Eyes are available in 4 sizes to cover full range of MicroDuct ID's.
• Pulling Harnesses are made from stainless steel and are available in 2 sizes:
• 2mm Harnesses support a 1,600lb total pull strength
• 4mm Harnesses support a 3,200lb total pull strength

Excellent for use in repair scenarios or at jetting heads, the MicroDuct Split Coupler provides a high quality, air- and water-tight seal. The divisible halves allow for installation around pre-installed cables.

FEATURES

• Can be Direct Buried
• Air- and water-tight
• Pressure rated up to 200PSI
• Fully divisible for easy installation around existing cables
• No special tools required for assembly
• Available for MicroDuct OD sizes 14,mm, 16mm, and 18mm

Recommended MicroDuct and FuturePath enclosure connector for OSP applications. Used to join Dura-Line's MicroTechnology products to assorted cabinets. Bulkhead Connectors are also available in sizes 8.5mm and 12.7mm

FEATURES

• Includes lock & nut
• Creates a weather-tight seal
• No special tools required
• Choose size based upon FuturePath configurations and size of MicroDuct

eABF cables are designed by AFL to offer the most rugged and reliable enterprise-based blown fiber solution in the market today. The cable design combines a light-weight, low-drag jacketing system that allows the cable to be blown long distances. The cable series also features additional attributes that set this product above and beyond traditional blown fiber cables. These enhanced features include mechanical strengthening that permits the cable to comply with industry-standard premise interconnect specifications. In addition, the eABF cable series feature flame-resistance characteristics which result in stand-alone riser and plenum rated options suitable for routing outside of the micro-duct system. Because of these mechanical, environmental and optical qualifications, eABF cables can also be installed in third-party, flame-rated duct and pathway systems.

FEATURES

• Flame rating options include:
• Plenum OFNP per NFPA 262 OFNP
• Riser OFNR per NFPA NEC 2005 Art 770.51(B)
• Complies with NFPA/NEC build codes for fire resistance
• Can be installed in eABF duct or third-party rated duct systems
• GR-20 Water-blocking reduces risk of moisture migration
• GR-409-CORE compliant
• Complete range of single-mode and multimode fibers supports 10G, 40G and 100G Ethernet architectures
• Aramid-strengthened cable core capable of robust tensile load bearing
• OD compatible with 6 mm ID MicroDucts for higher density fiber pathway solutions
• 96-Fiber count fits into 8.5 mm x 6 mm MicroDuct with up to 2,304 fibers per 24-way FuturePath Duct

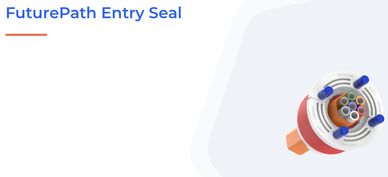

FuturePath Entry Seals are an effective solution to protect multiple pathway configurations from water, dirt, and rodents. These seals have a simple installation process with no specialty tools required. A split-design makes this product ideal for both new and existing FuturePath pathways and allows the seal to be placed at any location on the duct itself.

FEATURES

• Re-usable and removable
• Prevents dirt and dust from entering FuturePath
• Air- and water-resistant
• Simple installation with no special tools required
• Available in popular 2-way, 3-way, 4-way, and 7-way FuturePath configurations
• Fit a conduit ID range of 3.92” – 4.25” *20095076 fits a conduit ID of 3.92” – 4.18"

The MicroDuct Distribution Box (MDB) is a convenient indoor junction box where multiple MicroDucts can be joined together. The box is used in conjunction with FuturePath Enclosure Connectors. The hinge door gives users easy access while providing protection from dirt, dust, and water.

FEATURES

• NEMA 12 JIC 1 Door Continuous Hinge Wall Mount
• Body fabricated from 14-gauge steel and doors fabricated from 16-gauge steel
• Top and bottom external mounting plates
• Closed-cell oil-resistant neoprene gasket sealed lids
• Continuously-welded seams
• External screw clamps
• ANSI 61 gray polyester powder light texture inside and out over phosphatized surfaces

MDS Enclosure

FEATURES

• MDS (MicroDuct Distribution System) is designed for indoor enterprise, data center and DAS applications
• The MDS can be used for managing all forms of duct up to 2 1/2" OD
• The MDS can be used as a termination point, a pass through, and as a breakout box for routing large count cables into an OCEF
• Scalable - the MDS can be deployed as a single unit or stacked and attached back to back for larger jobs
• Unique, angular design allows for gentle sweeps to enhance fiber blowing
• Can be mounted to the wall or overhead ladder rack (12", 18" or 24")
• The MDS will accept splice trays

Mesh Pulling Grips for MicroDucts and Cables

Low-profile and made from Dual Polymer and Kevlar construction, the mesh Pulling Grip is an extremely strong, yet convenient means of pulling various sizes of MicroDucts or cables.

FEATURES

• Rated up to 700lbs
• Convenient pulling loop
• 60" total length
• Abrasion resistant with minimal fraying
• Can be used repeatedly
• Add minimal overall diameter to the MicroDuct or cable
• 0.50" (blue) can accommodate Microduct or cable diameters .375" to .750" (9.5mm to 19mm)
• 0.75" (yellow) can accommodate MicroDuct or cable diameters .750" to 1.25" (19mm to 31.8mm)

Bull-Line Pull Tape

Choose from Woven Polyester, Woven or Aramid Bull-Line Pull Tape. Available in pull strengths from 500lb – 2,500lb tensile strengths. Bull-Line Pull Tape can be pre-installed into conduit. Test results prove that Bull-Line is superior when compared to competitor brands.

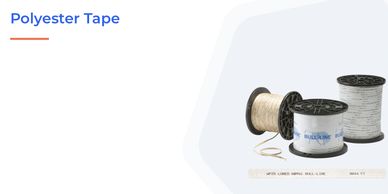

Polyester Tape

Bull-Line 100% Polyester Pull Tape provides a competitive solution for applications that require a high tensile strength and low elongation. Bull-Line Pull Tape is lightweight and has good blowability. Bull-Line Pull Tape has low burn through resistance in comparison to other brands. An added benefit of all Bull-Line Pull Tapes are the durable print and sequential markings, in both feet or meters, for accurate locating during installation. Bull-Line Pull Tape is made in the USA.

FEATURES

• Stiff-Tape™ lubricated coating
• Best burn-through (conduit cutting) resistance
• Good blowability into conduit
• Accurate sequential foot or meter markings
• Can be factory pre-installed into conduit
• Available on reels in a wide variety of continuous lengths
• Tensile strength range 500 lb - 6,000 lb

Locatable Tape

Bull-Line Locatable Tape is offered with a tracer wire for signal locating. The tracer wire is woven into Bull-Line Polyester Tape and provides a corrosion resistance conductor that is easily spliced in the field. Bull-Line Locatable Tape is made in the USA.

FEATURES

• Incorporates a tracer wire for signal locating
• Corrosion resistant fibers and conductor
• Accurate sequential foot or meter markings
• Wire conductors can be easily spliced in the field
• Can be factory pre-installed into conduit
• 22AWG (Solid) BC Semi-Rigid PVC Insulated 300V
• Conductor diameter 0.025 inches
• Tensile strength range 500 lbs - 2,500 lbs

Bull-Line Aramid Pull Tape offers the highest tensile strength per widths along with low elongation. These tapes are also sequentially marked in feet or meters for accurate installation measurements. Bull-Line Aramid Pull Tape is made in the USA.

FEATURES

• High strength, low stretch
• Very good burn-through (conduit cutting) resistance
• Excellent blowability into conduit
• Accurate sequential foot or meter markings
• Available on reels in a wide variety of continuous lengths
• Can be factory pre-installed into conduit
• Tensile strength range 1,800 lbs - 2,500 lbs

Bull-Line Bucket is Dura-Line’s proven Bull-Line 100% Polyester Pull Tape spooled in a 3.5-gallon bucket for convenient storage, transportation, and handling. Available with tensile ratings of 500, 1250, 1800, and 2500 lbs. – note, tape length varies according to tensile rating. Bull-Line Pull Tape is made in the USA.

FEATURES

• Perfectly suited to relatively short installation distances
• Stiff-Tape™ lubricated coating
• Best burn-through (conduit cutting) resistance
• Good blowability into conduit
• Accurate sequential foot or meter markings
